How to Choose the Perfect Industrial Touchscreen Monitor for Your Business: A Detailed Guide by Anytouch Technology
Industrial touchscreen are everywhere, making work easier and faster. However, choosing the right industrial display may not be easy work. You need to consider many factors, such as the display's intended use, the application scenario, and the specific features you require.
This guide will walk you through the key factors in choosing an industrial touchscreen, helping you make a smart choice based on your real-world needs.
1. Touch Technology Options
Touch technology is the fundamental factor to determine user interact experience and environmental adaptability. Currently, there are three main types of touch technology : Capacitive , Resistive , and Infrared .

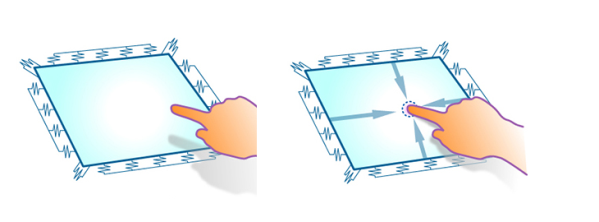

Capacitive touch
Capacitive touchtechnology has become the go-to choice for modern industrial applications, and for good reason:
l Multi-touch capability: Projected capacitive (PCAP) sensors detect touch through glass surfaces, supporting gestures like pinch-to-zoom
l Exceptional clarity with high light transmittance
l High touch sensitivity and fast response time (≤3ms)
However, capacitive sensors need conductive contact to work, which means they have limitations. If your workers wear thick gloves (over 2mm), the screen might not respond well. Similarly, wet conditions can affect performance, and these screens are somewhat sensitive to electromagnetic interference.
Best used in: Medical equipment like diagnostic instruments, warehouse sorting systems, high-end automated production lines, and logistics control centers where you need data visualization and complex interactions in relatively clean environments.
Resistive Touch Technology
Resistive touch work by detecting physical pressure on the screen surface to locate touch points. This means they'll respond to any touch input, no matter how thick your gloves are or whether the surface is wet. The trade off is that you get lower clarity because of the extra screen layers, and these screens only support single-touch operation, which limits interface complexity. The surface can also wear down over time with heavy use.
Best used in: Heavy industrial environments like machine shops, chemical plants, and steel mills where workers wear gloves and conditions can be harsh.

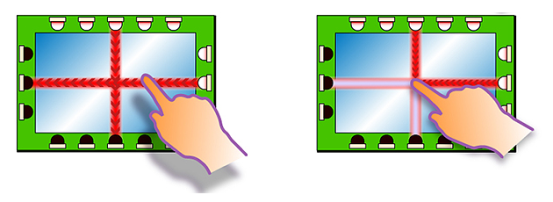

Infrared Touch Technology
Infrared touchwork differently. They have infrared emitters and receivers installed around the screen frame, creating an invisible grid of light. When you touch the screen, your finger interrupts the beams, and the system detects touch coordinates by identifying which beams were blocked.
These screens support multi-touch functionality, and because they don't rely on electrical conductivity like resistive and capacitive screens, you can use your fingers, gloves, or even other tools to operate them. Since there's no physical contact layer, infrared screens don't get scratched or worn down, providing long lifespan.
The downside is sensitivity to dust and contamination. Screen surface dust or smudges can affect touch sensing, and strong lighting can cause interference and touch drift issues.
Best used in: Command and control centers (like power dispatch or traffic control), digital signage, and large equipment control panels where you need big screens and multi-touch capability. These applications are usually indoors where you can keep things relatively clean and need rich interactive features.
1. Environmental Durability and Protection Ratings

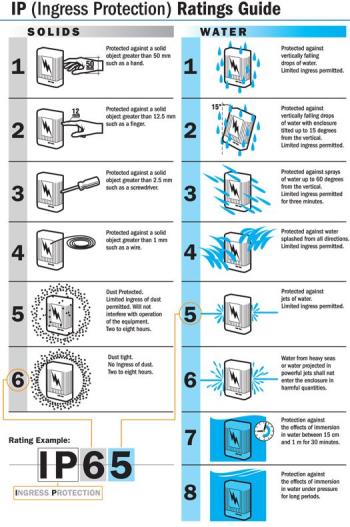

IP Protection Ratings
Industrial environments expose touchscreens to dust, moisture, chemicals, and physical impacts that would quickly damage standard displays. IP (Ingress Protection) ratings give you a standardized way to measure environmental resistance. The two-digit IP rating system shows protection against solids (first digit) and liquids (second digit), with higher numbers meaning better protection.
For typical indoor industrial applications with moderate dust exposure, IP65 rating is usually enough. This provides complete dust protection and can handle water jets from any direction. If your facility requires intensive wash downs (like food processing plants or pharmaceutical clean rooms) or outdoor installation, you should go for higher protection levels. IP67 can handle brief submersion, while IP69K can withstand high-temperature, high-pressure wash down, making it suitable for the harshest environments.
It's important to note that overall protection depends on how you install the unit. For example, even if a monitor's front panel is rated IP65, when using flush mounting, you need extra sealing where the cabinet meets the display. Otherwise, dust and moisture can still get in from the back and damage the equipment.
Be practical when choosing protection ratings. Over-specifying will unnecessarily increase your costs, while under-protection leads to premature equipment failure and higher maintenance and replacement costs. I'd recommend carefully evaluating worst-case environmental conditions, including seasonal changes, cleaning procedure intensity, and potential exposure from nearby processes.

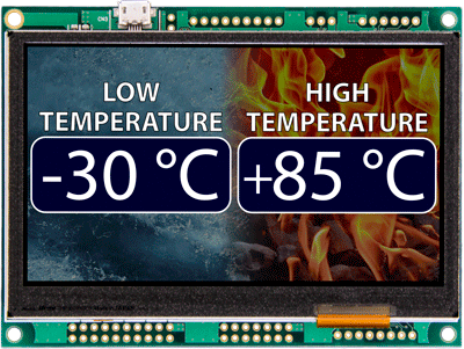

2. Temperature Range Specifications
Operating temperature range significantly affects where you can reliably deploy industrial touch displays. Standard industrial displays typically work in temperatures from -10°C to +50°C, which is fine for climate-controlled indoor facilities. But if your application involves outdoor installation, cold storage facilities, or high-temperature production processes, you'll need wide-temperature models that operate from -30°C to +80°C.
When evaluating temperature requirements, look at both operating and storage temperature specs. Even if the equipment's actual working environment stays constant, if it's stored in an unheated warehouse during winter, you might need cold-start capability so it can safely power up and quickly reach operating temperature from a cold state.

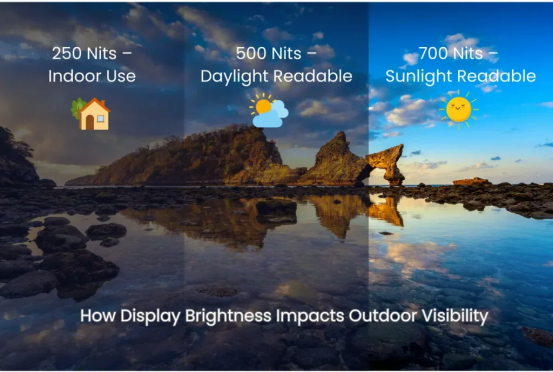

3. Brightness and Visibility
Industrial environments often have challenging lighting conditions, including bright overhead lighting, skylights, or exposure to outdoor environments. Display brightness (measured in nits or cd/m²) determines visibility under various lighting conditions.
Standard industrial displays typically range from 300 to 500 nits, which works well for moderately lit indoor spaces. But if your display will be near windows, loading docks, or used outdoors, you must choose high-brightness models with 700 nits or higher. Only sufficient brightness ensures operators can clearly read screen information regardless of sun position.
Anti-glare (AG) coating (which reduces reflections) or anti-reflective (AR) coating (which improves light transmission) can reduce surface reflections and internal glare, preventing the screen from "washing out" under direct sunlight. These features are especially valuable for outdoor installations or applications where the display faces strong light sources.
4. Connectivity and Integration

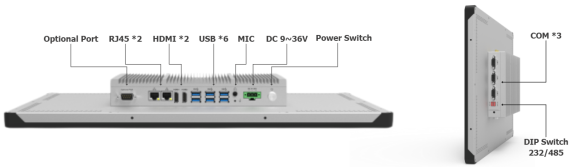

Interface Options
Common video interfaces include HDMI, DP, DVI, and VGA, with digital interfaces typically providing better image quality than analog VGA. USB connections provide touch sensor communication, simplifying cable management. Ethernet connectivity enables remote management, monitoring, and content delivery. Serial interfaces (RS-232, RS-485) help with integration into industrial control systems and legacy equipment.
5. Installation Options and Physical Integration
Industrial touchscreen monitors support various mounting configurations, and you need to choose the right installation method based on your actual application:
Flush Mount: The display sits flush with the panel for a clean, attractive appearance. This works well for self-service retail terminals (like self-ordering kiosks and self-checkout machines), smart vending machines, and other consumer-facing applications that need a neat, attractive interface.
Front Mount/Panel Mount: The display mounts from the front to an equipment panel or control cabinet, requiring precise cutout dimensions and sealing to ensure protection ratings. This is widely used in industrial control systems, automated equipment control panels, and production line monitoring stations, making field installation and maintenance easier.
Wall Mount: Uses standard VESA mounting holes for flexible installation, though it needs stable support structures. This suits office environments, conference rooms, and monitoring centers where you need flexibility to adjust position or viewing angle.
Open Frame: A shell-less design that can be integrated into custom enclosures or equipment cabinets, providing maximum design flexibility for OEM/ODM applications. Commonly used in medical equipment, industrial machinery, and custom automation equipment requiring deep integration.
Rack Mount: Standard rack-mount design suitable for server rooms, data centers, and communications rooms requiring standardized cabinet management.
6. Manufacturer Support and Warranty
Anytouch Certifications
Standard industrial equipment warranties run one to three years, with extended warranty options usually available. When comparing options, don't just look at equipment purchase price. Evaluate total cost of ownership, including warranty coverage, potential downtime losses, and repair or replacement costs. Sometimes a mid-range product with excellent support services will be more cost-effective overall than a high-end product with limited support.
I'd recommend prioritizing manufacturers who provide: timely technical support responses, readily available or quickly delivered spare parts, detailed technical documentation and installation guides, and rapid replacement programs for serious failures.
Summary: Recommended Selection Process
To ensure your selection is accurate and efficient, I recommend following this four-step process systematically to avoid missing any critical requirements.
1. Start by defining your environment. Write down your key operating conditions: temperature range, humidity, dust or oil exposure, electromagnetic interference, and whether operators wear gloves. These factors will guide every other decision you make.
2. Next, pick your touch technology. Use what you learned in step one to choose between the three types. Clean environments with multi-touch needs call for capacitive screens. Harsh conditions or thick gloves mean resistive is your best bet. Large displays with rich interactions in controlled settings work well with infrared.
3. Then match the specifications. Work through the requirements in order of importance: protection rating first, then temperature tolerance, brightness, and finally connectivity options. For outdoor installations, for example, you'd start by confirming IP67 protection and high brightness before considering other features.
4. Finally, evaluate your supplier. Check their certifications, after-sales support, and ability to customize. When possible, request a sample unit to test in your actual environment for about a week.
The key take away is this: the most expensive option isn't always the right one. Over-specifying wastes money, while under-specifying leads to equipment failures and costly replacements. Your goal is finding the sweet spot where the equipment genuinely matches your needs, environment, and budget. That's what makes for a smart purchasing decision.
